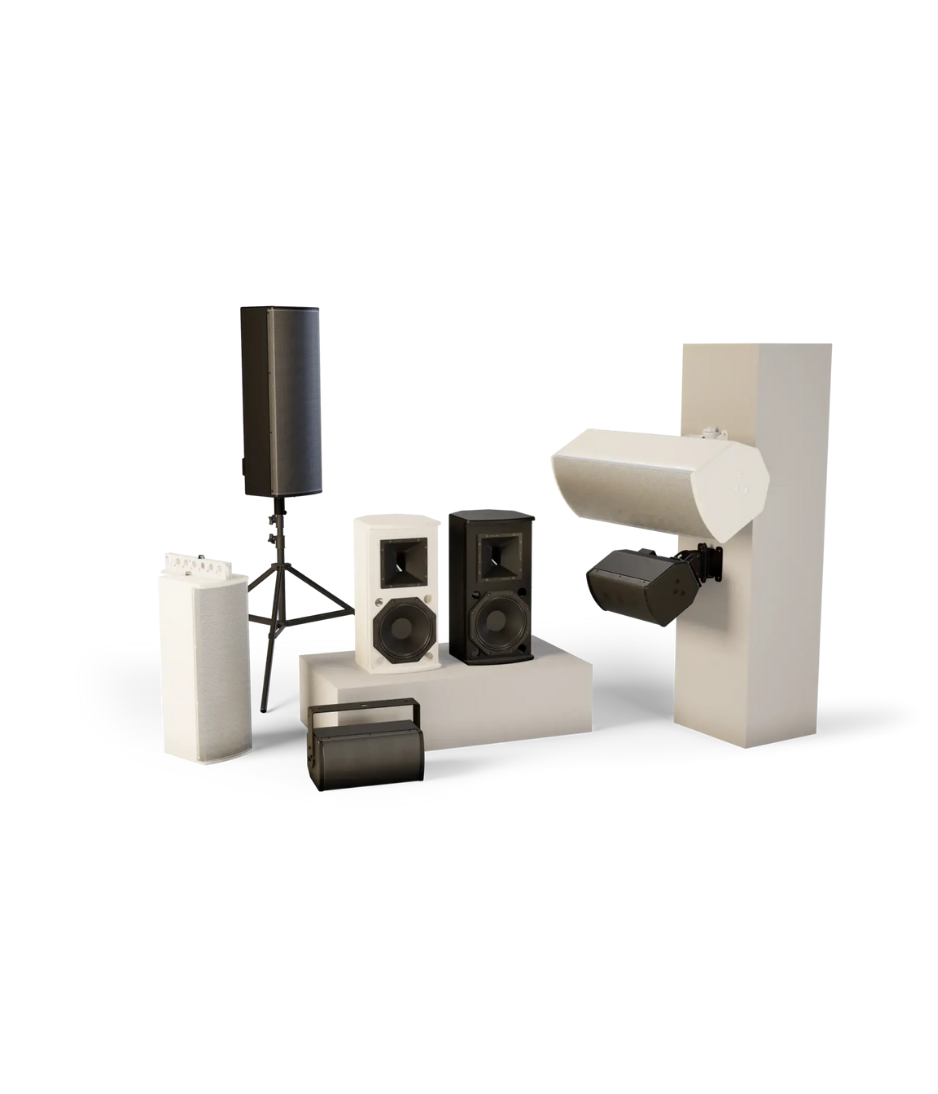

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. The AMU105 is an ultra-compact ArenaMatch Utility model for outdoor applications that require excellent audio from an unobtrusive loudspeaker. It provides wide, even coverage with a 100° × 100° constant-directivity high-frequency horn, 100 Hz – 16 kHz frequency response, 118 dB peak SPL, and supports the lowest vocal ranges with a Bose Professional LF5 5.25-inch woofer.

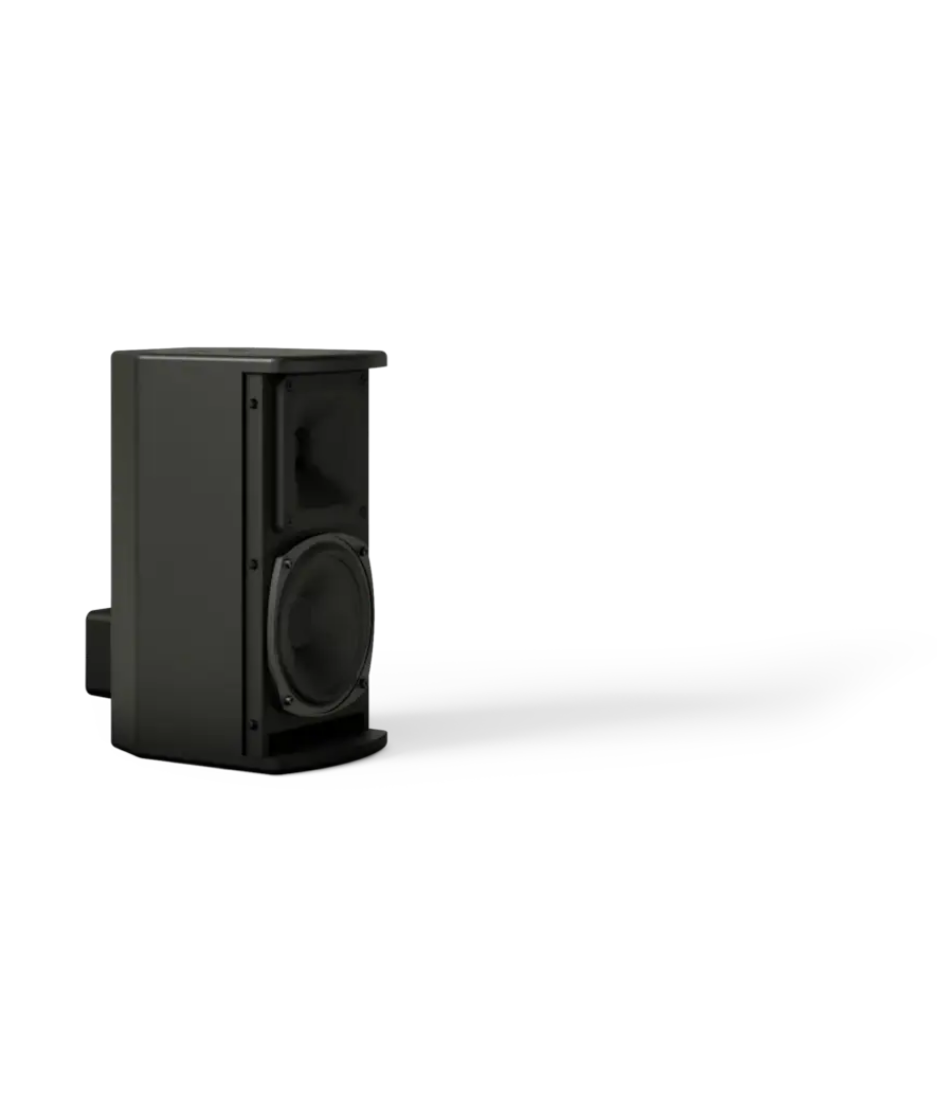

Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

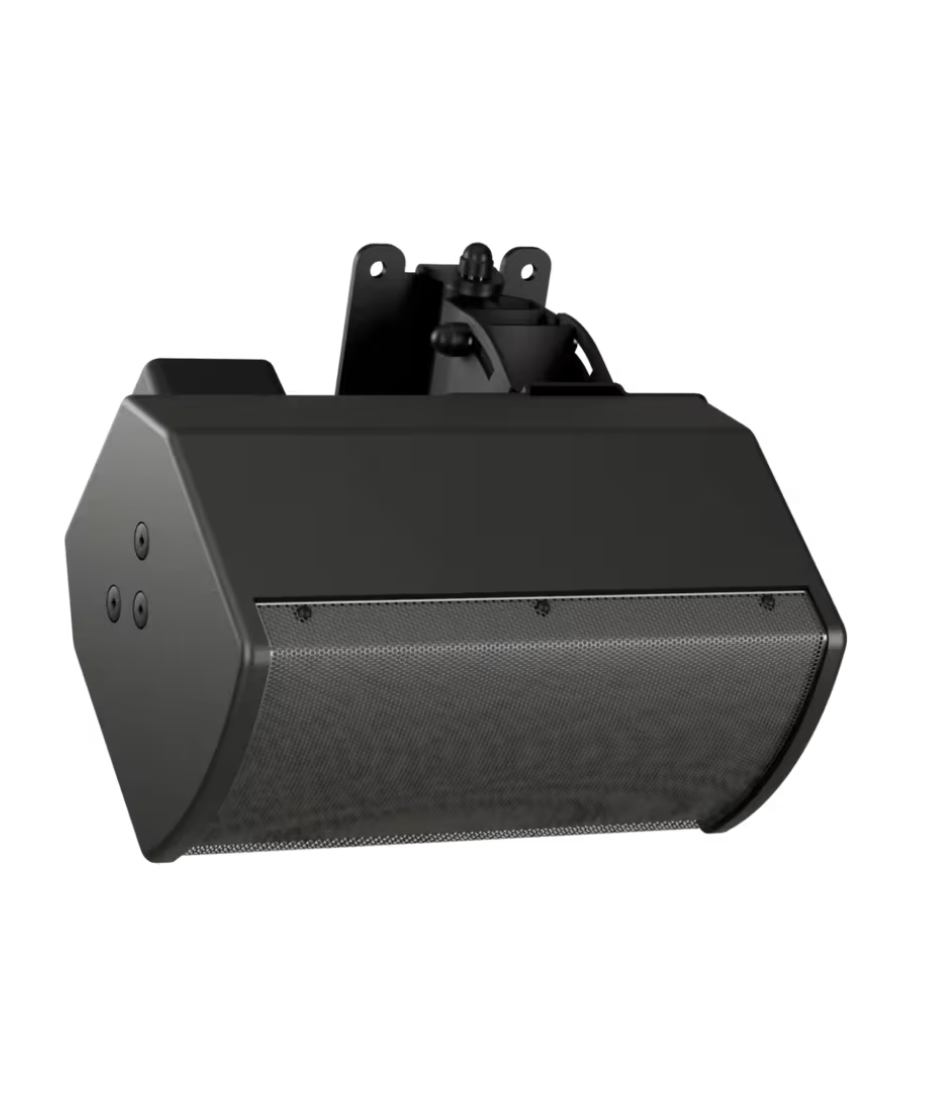

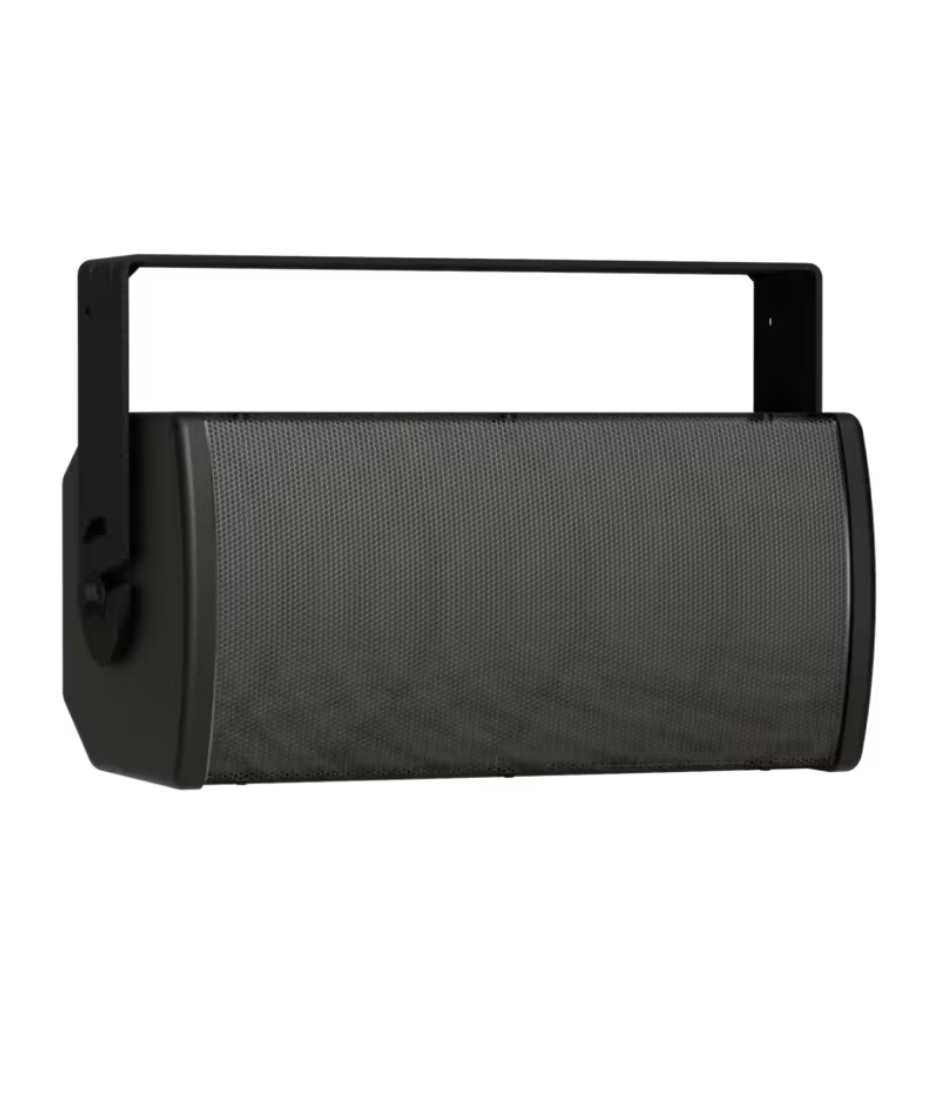

Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
Compatible accessories include: Surface-Mount Pan-and-Tilt Bracket, Single-Point Suspension Bracket with multi-angle attachment points, and External Pole Adapter for portable use
Compact cabinet construction with rust-resistant suspension points
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
AMU is a stocked product with no custom order or surcharge
Available in black or white finish to match the design of your project

Applications

Designed for a wide range of applications, including:

Bars, high-energy restaurants
Fitness centers
Auditoriums
Medium/small places of worship
Gathering/common areas with live performances
Indoor entertainment, sports and activity centers
Multipurpose halls
Outdoor dining and bar areas
Hospitality/lodging
Concourses
Public walkways
Outdoor pool and common areas
Theme parks
Stadia

Technical Specification

COMPLIANCE

EN 54-24 Certified
Yes

Safety Agency Ratings
EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

PHYSICAL

Colors
Black

Enclosure Material
Exterior-grade plywood

Environmental
Indoor or outdoor. IP55-rated for direct exposure outdoor ratings

Grille
3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish

Ingress Protection
IP55 per EN60529; IP33C per EN 54-24

Suspension/Mounting
2 × M8 threaded inserts for U-bracket, 2 × M8 threaded inserts on rear (75 mm, 2-bolt pattern)

Product Dimensions (H×W×D)
6.0 in × 12.0 in × 9.0 in (152 mm × 304 mm × 229 mm), loudspeaker with input cover

Net Weight
14.4 lb (6.5 kg), loudspeaker / 16.5 lb (7.5 kg), loudspeaker with U-bracket

Shipping Weight
21.0 lb (9.5 kg)

PERFORMANCE

Frequency Range (-10 dB)
90 Hz – 18,000 Hz

Coverage, Horizontal
100°

Calculated Maximum SPL @ 1 m
116 dB (free field), 118 dB (wall/ceiling)

Nominal Impedance
8 Ω

Power Handling, long-term continuous
100 W

Power Handling, Peak
400 W

Sensitivity (SPL/1 W at 1 m)
90 dB (free field), 92 dB (wall/celling)

Transformer Taps, 100V
10, 20, 40, 80 W

Transformer Taps, 70V
5 W, 10 W, 20 W, 40 W, 80 W

Coverage, Vertical
100°

TRANSDUCERS

Crossover
2.0 kHz, passive

High-Frequency
1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil

Low-Frequency
1 × Bose Professional LF5 high-excursion 5.25 in (133 mm) woofer, 1.5 in (38 mm) voice coil

Product codes

811433-0110
ArenaMatch Utility AMU105, black

811433-0210
ArenaMatch Utility AMU105, white

Warranty Period

5 years / 2 years
