Hikvision Analog Amplifier 60W
Hikvision Analog Amplifier 60W
Hurry up, only 10 items left in stock.
-
Estimated delivery: Sep 28 - Oct 02
Couldn't load pickup availability
Share this product
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Don’t miss out on this limited-time advantage crafted for you
Schedule Appointment For engineer Visit
Schedule Appointment For engineer Visit
Get Installation & Programing
Get Installation & Programing
Contact Us
Contact Us
+971509947492
- Support four types of audio input: Bluetooth, USB flash drive, microphone, and RCA, with flexible and convenient operation
- Built-in Bluetooth module, support fast Bluetooth playback
- Support plugging in the USB flash drive to play audio sources
- Support independent microphone volume control and two-channel partition volume control
- Support two-channel audio mixing output
- Adopt high-strength engineering plastics, sturdy and durable
- Integrated functional design, convenient and reliable
- Function
- Protection Functionshort circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
- Audio
-
Rated Power
60 W
24 VDC
-
Frequency Response
USB, Bluetooth: 20 Hz to 20 kHz
MIC, RCA Input: 20 Hz to 8 kHz
-
THD And SNR
THD: ≤1%
SNR: ≥100 dB
- Interface
-

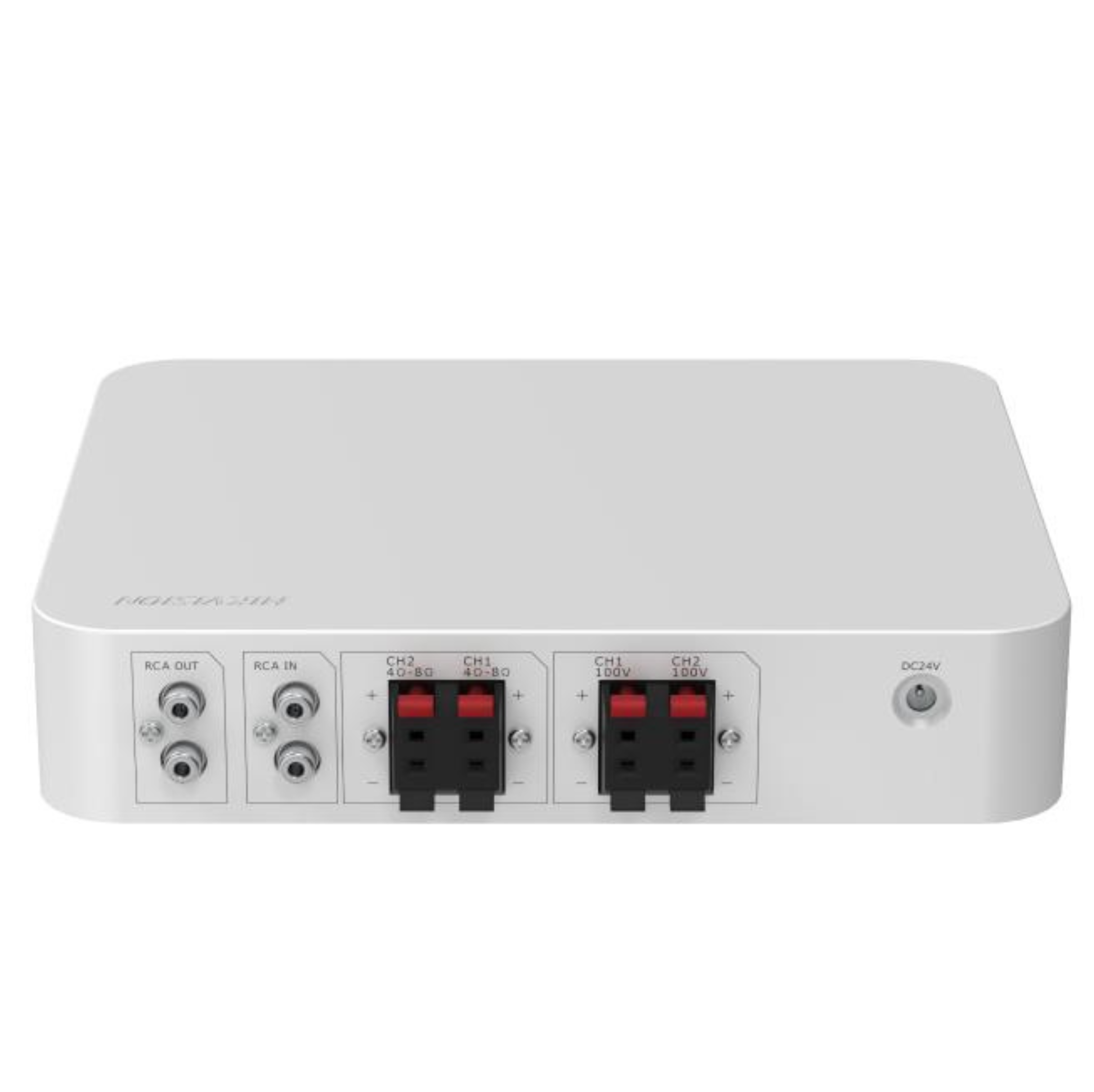

Audio In
MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jack
USB 2.0 × 1
RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack
Bluetooth
-
Audio Out
Constant Voltage Output × 2，100 V COM
Constant Resistance Output × 2，30 W 4 Ω to 8 Ω
RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack
RCA Cascading: support a cascade of up to 3 amplifiers
Bluetooth
-
LED Indicator
Power indicator (solid white): the device is normally working
USB flash drive indicator (solid white): the device is in USB mode
Bluetooth indicator (solid blue): the device is in Bluetooth mode
USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed
- Volume KnobMIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
-
USB
USB 2.0
File format: FAT32
USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.
- Power InterfaceAperture size: Ø2.0 mm
- General
- MaterialPlastic
- Dimension190.8 mm × 230.8 mm × 51.2 mm (7.48" × 9.06" × 2.01")
- Package Dimension362 mm × 280 mm × 100 mm (14.25" × 11.02" × 3.94")
- Approx. 1445.5 g (3.19 lb.)
- With Package WeightApprox. 2113.3 g (4.66 lb.)
- ColorWhite
-
Packing List
Device × 1
Power Adapter × 1
Power Cord × 1
Regulatory Compliance and Safety Information × 1
- BluetoothBluetooth 5.3，10 m
- Operating Temperature-10 °C to 55 °C(14 °F to 131 °F)
- Operating Humidity＜90% (No condensation)
-
Power Consumption
Standby Consumption: 1 W
Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
