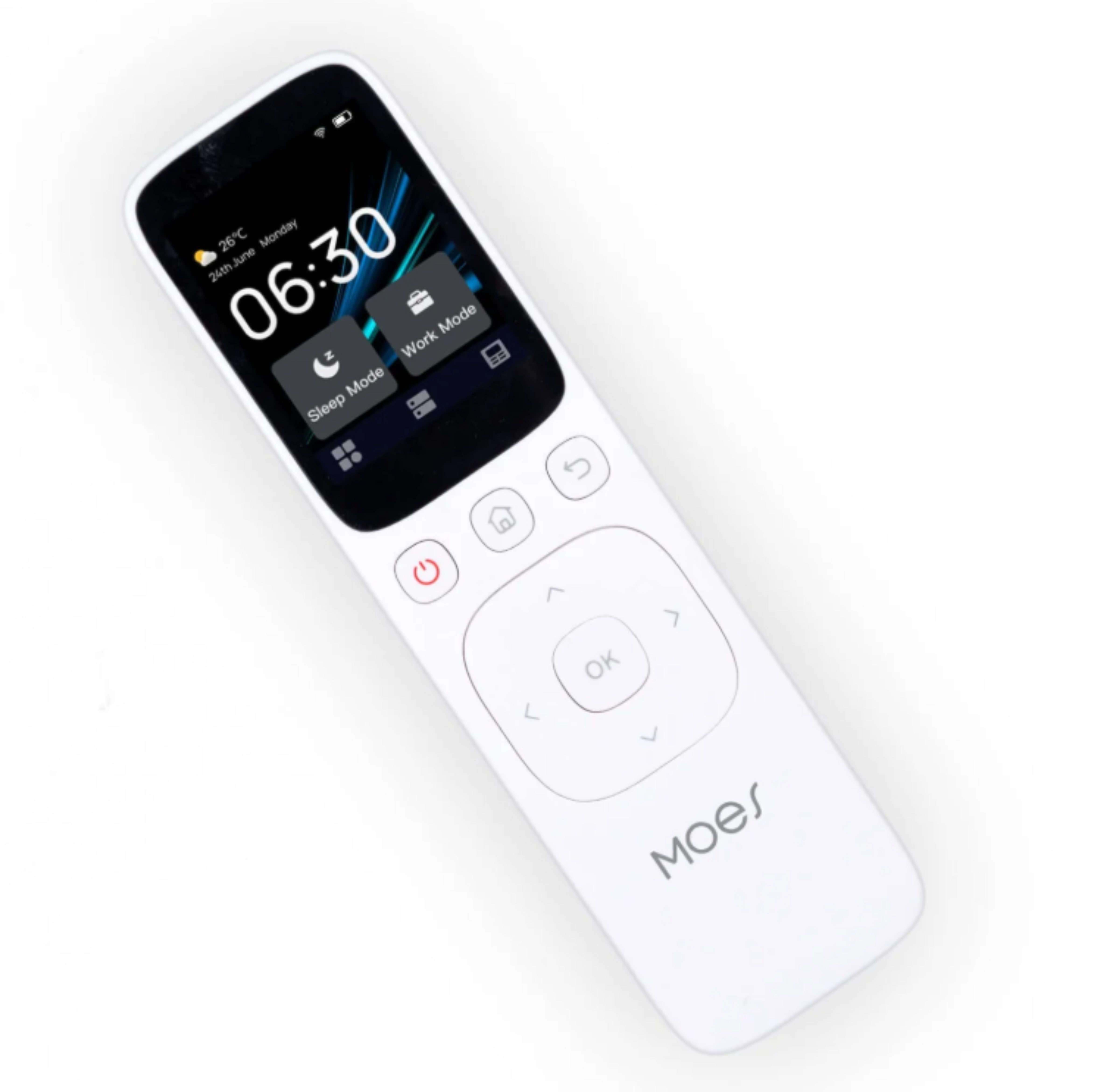

MOES Wifi Tuya Smart Central Control Panel Wireless Touch Screen Handheld IR Remote Controller For Home Appliance

Features

• Smart Handheld Center Control: WiFi handheld touch screen allows you to easily control the equipment in the whole house.
• One Touch to Control Smart Devices & Trigger Smart Scenes：You can trigger any scene and connect multiple scenes with only one button, synced with mobile phone.
• Wireless Design with Charging Dock&Cable: There are two charging modes. With no need to connect the wiring module to the power supply and portability. You can choose to connect with charging dock or directly connect with center control panel to charge. The charging dock is designed for convenient operation of the device at low power levels.
• Multiple Control Modes: Touch screen, push button and smart phone, three operation modes you can choose from.
• Variety of devices can be connected: It integrates WiFi control panel, IR remote controller and weather assistant, which saves space and time for your home life.
  Note: It cannot be used as Zigbee/ Bluetooth gateway. Please purchase gateway in addition if you want to connect it with Zigbee/Bluetooth devices.
• Upgraded version of traditional one: This is a meaningful upgrade over the traditional control panel in many aspects, including functions to support infrared remote control operation and handheld use, and can be operatedd by buttons as a more comprehensive control panel.
• Integrated function of multiple devices: The newly upgraded center control panel, which can adjust light, control curtains switch and start scenes with one touch, has achieved a functional breakthrough. With this center control screen, you can easily control smart devices at home.
• Infrared Control as a remote controller: With infrared remote control function, it is beyond any traditional remote controller to control TV, air conditioning, fans and other infrared remote sensing equipment together, realizing one device equals to a variety of remote controllers.
  Note: This function can be realized only after your phone connected to the device.
• Privacy function: You can set your own privacy scenes and devices. After the Settings complete, they will not appear on the center control screen or the home screen of your phone.
  Note: You can only set and view the privacy scenes and devices via your phone.

Specification

• Product Model: CCP-Z1
• Standby Power: ≤0.5W
• Infrared Frequency: 38K
• Infrared Angle: 60°
• Infrared Range: ≤8m(Affected By Environment)

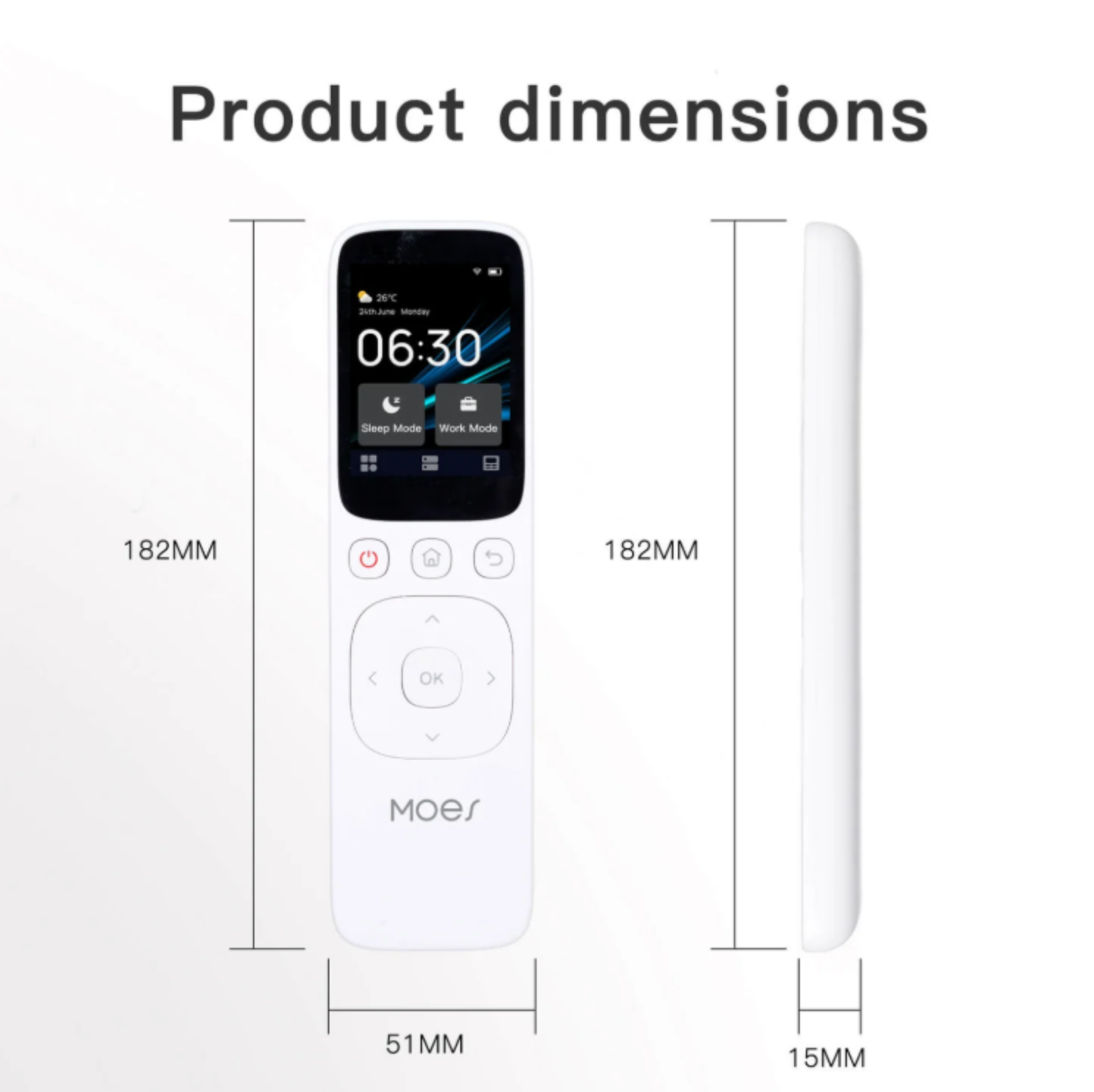

• Product Size: Main body:185mm×52mm×15.5mm
• Base: φ84.2mm×28.8mm
• Net Weight: About 266.9g
• Wireless Protocol: Wi-Fi, IR

Package Listing

• Smart Center Control *1
• Charging Dock *1
• Charging Cable*1
• User Manual *1

Unlock more features with Smart Central Control

User Manual
